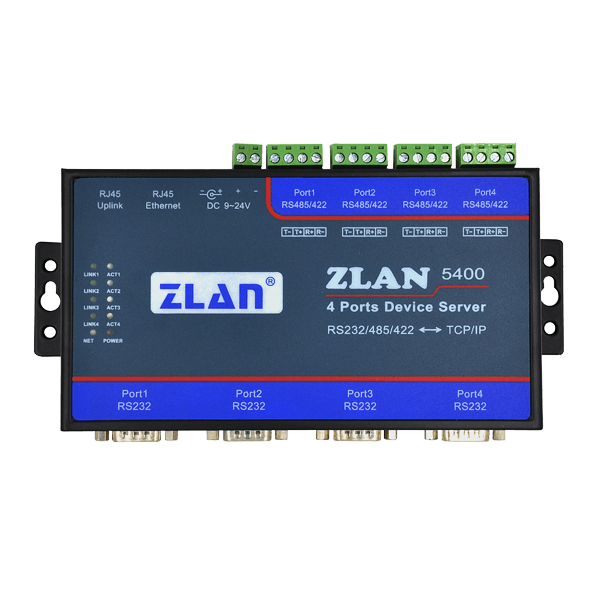

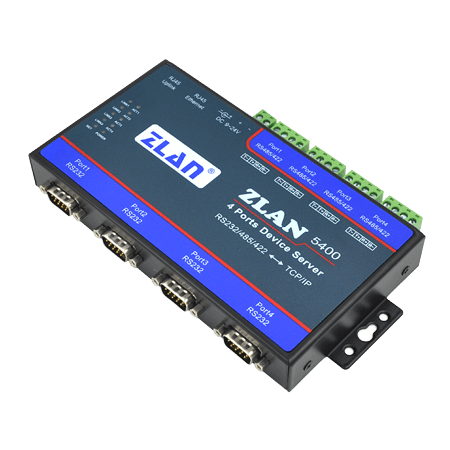

4 Ports Serial Device Server

ZLAN5400

ZLAN5400 is a 4 ports protocol converter between RS232/485/422 and TCP/IP. This product has been launched for a long time with convenient and rich interface, is recommended multi serial device server.

  • Support 4 RS485 serial ports, the interface type are terminal.
  • Support 4 RS232 serial ports, the interface type are DB9, support full function of flow control.
  • Support 4 RS422 serial ports, the interface type are 4 line terminal.
  • 5400 provide an extra Ethernet interface, can be used as switch and cascade.
  • Provide two power input forms: terminal and DC plug, the input voltage is 9~24V.

Contact

Download
  • Product Introduction
  • Technical Parameter
  • Product File

Summary

ZLAN5400 serial device server is a 4 ports protocol converter between RS232/485/422 and TCP/IP launched by Shanghai ZLAN Information Technology Co., LTD. ZLAN5400 support four RS232 serial ports and RS422/485 serial ports, connecting to the ZLAN5400 via a cable can realize four serial ports full-duplex work at the same time, the function of each serial ports are the same as ZLAN5102/ZLAN5103, is the ideal choice of the multi-serial port connecting to the Internet.
ZLAN5400 support extending to 8 serial ports, 12 serial ports and 16 serial ports via the cascade Ethernet port, which can be extended to 32 serial ports.

Feature

  • The 4 serial ports all support 3 serial forms: RS232, RS485, RS422.
  • The 4 serial ports can independently full-duplex working, no interference between each other.
  • Support extension function, can extending up to 32 serial ports.
  • Rich signal lights, each port has self TCP connecting indicator and data activity indicator.
  • Support power supply via cable ----POE power supply.

Technical parameter

Network Interface

  • Ethernet
  • 10/100 Mbps, RJ45
  • Protection
  • 2KV electrical plus protection

Serial Interface

  • Port
  • RS-232/485/422
  • Serial Port
  • 4
  • Parity
  • None, Even, Odd, Space, Mark
  • Data Bite
  • 5～9
  • Stop Bit
  • 1,2
  • Flow Control
  • RTS/CTS,DTR/DCR, XON/XOFF
  • Baud Rate
  • 1200bps～460800bps（Can be customized to 1M or 1.5M）

Software

  • Protocol
  • TCP,HTTP,UDP,ICMP,ARP,IP,DNS,DHCP
  • Virtual Serial Port Platform
  • Windows 98/2000/XP/WIN7/WIN8
  • Configure Method
  • Web brower, ZLAN ZLVirCom, serial like-AT command

Mechanical Properties

  • Voltage Input
  • DC9～24V，45mA

Mechanical Properties

  • Shell Material
  • Anti-electromagnetic material SECC steel plate
  • Size
  • L×W×H=9.4cm×6.5cm×2.5cm

Work Environment

  • Work Temp., Humidity
  • -30～85℃，5～95% RH
  • Storage Temp., Humidity
  • -30～85℃，5～95% RH
